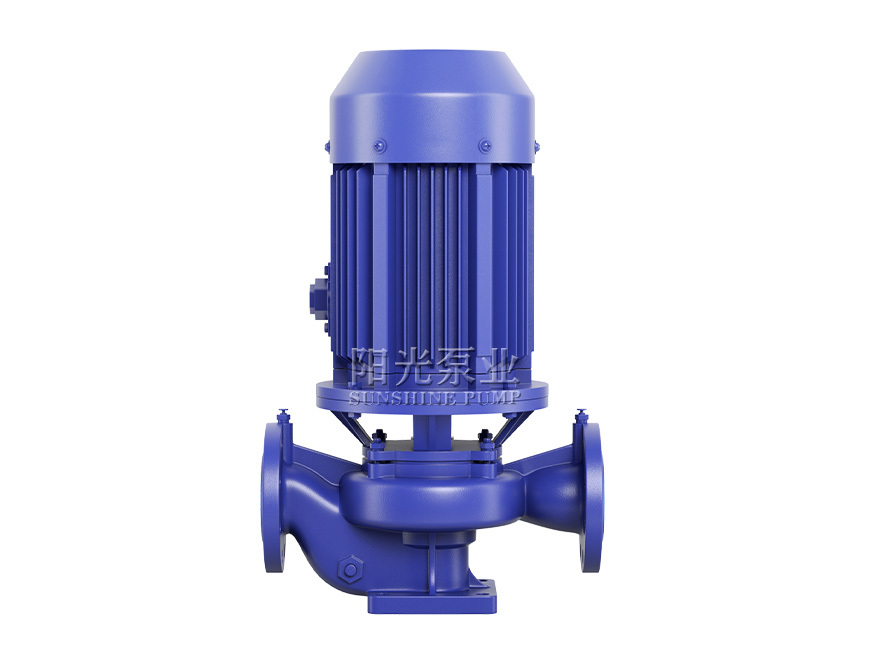

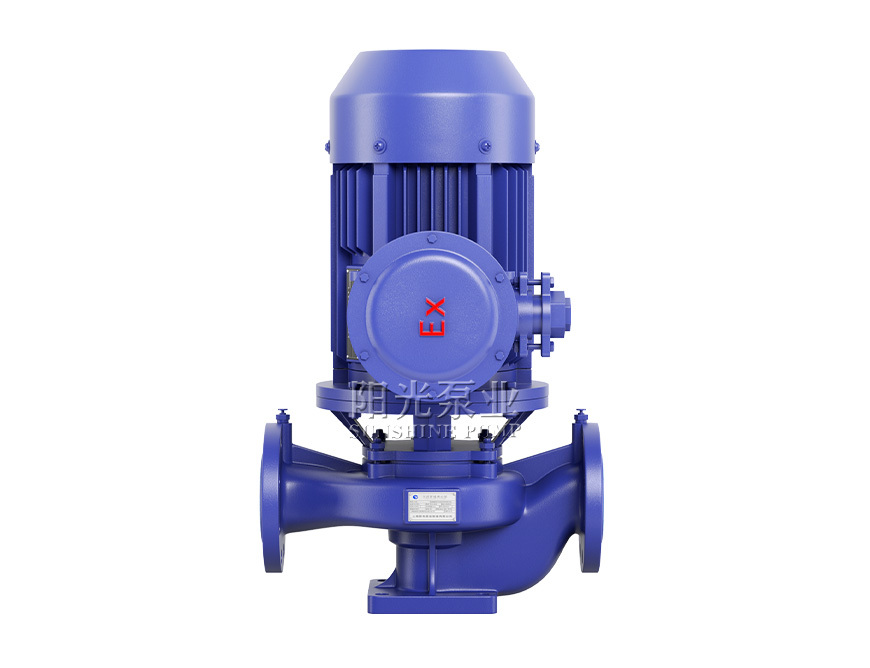

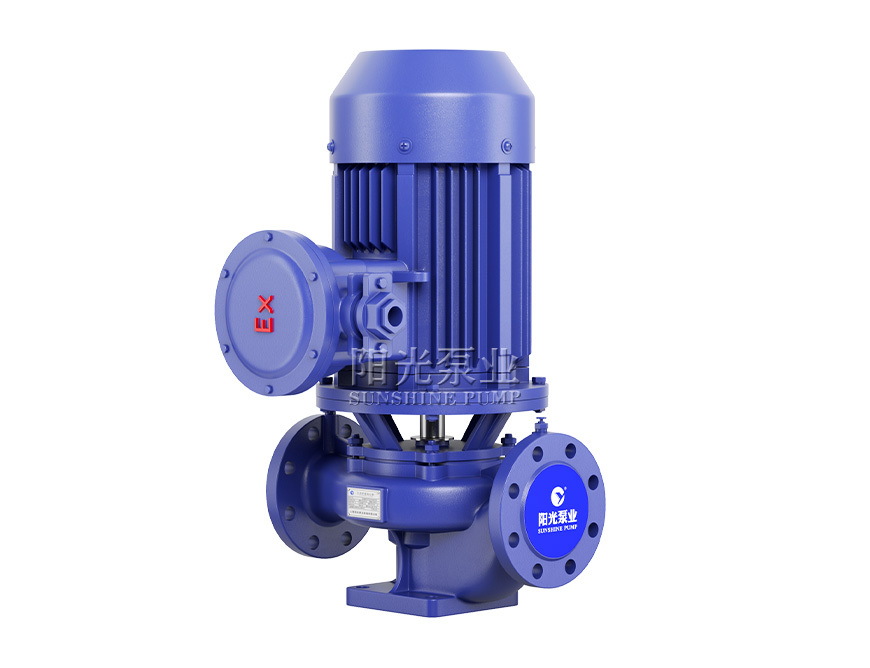

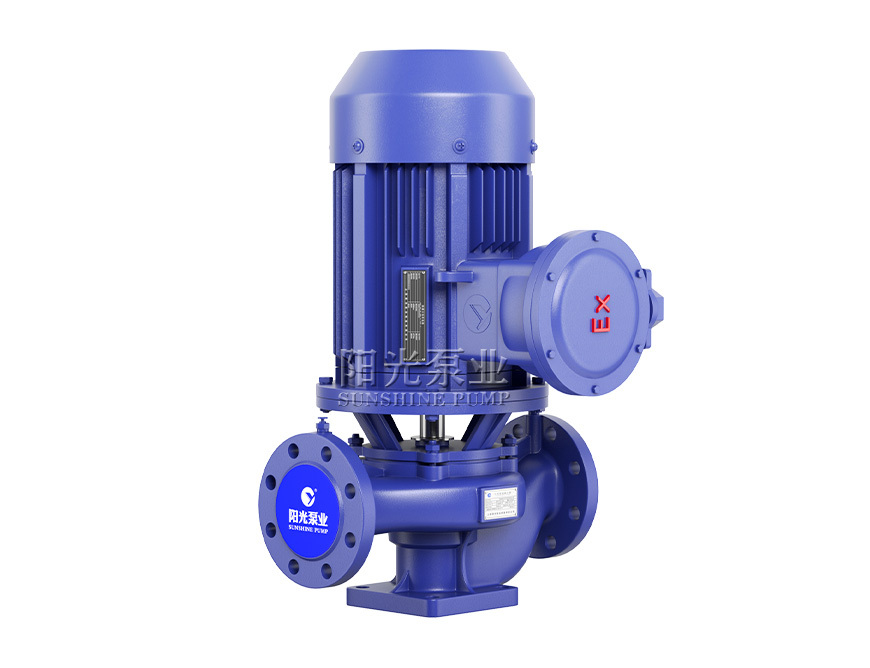

YG型立式防爆离心泵

防爆离心泵,具有高效节能、性能可靠等优点

YG型立式防爆离心泵 三维视频
点击播放
产品简介

YG型立式单级单吸防爆离心泵,是联合国内水泵专家选用的优秀水力模型,采用IS型离心泵之性能参数,在一般立式泵的基础上进行巧妙组合设计而成。同时根据使用温度、介质等不同在ISG型基础上派出适用热水、高温、腐蚀性化工泵、油泵。该系列产品具有高效节能、噪音低、性能可靠等优点。

产品特点

·泵为立式结构,进出口口径相同,且位于同一中心线上,可像阀门一样安装于管路之中

·叶轮直接安装在电机的加长轴上,轴向尺寸短,结构紧凑美观,占地面积小,建筑投入低,加上防护罩则可置于户外使用。

·泵与电机轴承配置合理,能有效地平衡泵运转产生的径向和轴向负荷,从而保证了泵的运行平稳,振动小、噪音低。

·轴封采用机械密封或机械密封组合,采用钛合金密封环、中型耐高温机械密封和硬质合金材质,耐磨密封,能有效地延长使用寿命。

·安装检修方便,无需拆动管道路系统,只要卸下泵联体座螺母即可抽出全部转子部件。

适用范围

·输送油、煤油、柴油,溶剂,食用油被输送介质温度为-20℃~120℃。

·广泛应用与油库,码头,船舶,化工,轻纺,环保等工矿企业。

·治金、化工、纺织、木材加工、造纸以及饭店、浴室、宾馆等锅炉高温热水增压循环输送及城市住房采暖循环用泵,使用温度105℃以下。

结构图纸

YG型立式防爆离心泵爆炸图(带水印-16号)

性能参数

序号
型号流量
(m³/h)
 扬程
 (m)
 功率
 (kW)
转速
(r/min)
电压
(V)
1YG20-1102.5150.752900220
2YG20-1602.5320.752900220/380
3YG25-1104150.752900220/380
4YG25-1254200.752900220/380
5YG25-125A3.6160.752900220/380
6YG25-1604321.52900380
7YG25-160A3.7281.12900220/380
8YG32-1004.512.50.752900220/380
9YG32-100I6.312.50.752900220/380
10YG32-1255200.752900220/380
11YG32-125A4.5160.752900220/380
12YG32-1606.5321.52900380
13YG32-160A4251.12900220/380
14YG32-160I6.3322.22900380
15YG32-2004.55032900380
16YG32-200A4442.22900380
17YG32-200B3.5381.52900380
18YG32-200I6.35042900380
19YG32-200IA6.34432900380
20YG40-1006.312.50.752900220/380
21YG40-100A5.6100.752900220/380
22YG40-1256.3201.12900220/380
23YG40-125A5.6160.752900220/380
24YG40-1606.3322.22900380
25YG40-160A5.9281.52900380
26YG40-160B5.5241.12900220/380
27YG40-2006.35042900380
28YG40-200A5.94432900380
29YG40-200B5.3362.22900380
30YG40-2506.3807.52900380
31YG40-250A5.9705.52900380
32YG40-250B5.5605.52900380
33YG40-100I12.5 12.51.12900220/380
34YG40-100IA11100.752900220/380
35YG40-125I12.5201.52900380
36YG40-125IA11161.12900220/380
37YG40-160I12.53232900380
38YG40-160IA11.7282.22900380
39YG40-160IB10.4221.52900380
40YG40-200I12.5505.52900380
41YG40-200IA11.744.542900380
42YG40-200IB10.63632900380
43YG40-250I12.580112900380
44YG40-250IA11.6707.52900380
45YG40-250IB10.8607.52900380
46YG40-250IC10525.52900380
47YG50-10012.512.51.12900220/380
48YG50-100A11100.752900220/380
49YG50-12512.5201.52900380
50YG50-125A11161.12900220/380
51YG50-16012.53232900380
52YG50-160A11.7282.22900380
53YG50-160B10.4221.52900380
54YG50-20012.5505.52900380
55YG50-200A11.74442900380
56YG50-200B10.63632900380
57YG50-25012.580112900380
58YG50-250A11.3707.52900380
59YG50-250B10.8607.52900380
60YG50-250C10525.52900380
61YG50-100I2512.51.52900380
62YG50-100IA22.3101.12900380
63YG50-125I252032900380
64YG50-125IA22.3162.22900380
65YG50-160I253242900380
66YG50-160IA23.42842900380
67YG50-160IB21.62432900380
68YG50-200I25507.52900380
69YG50-200IA23.5447.52900380
70YG50-200IB21.8385.52900380
71YG50-250I2580152900380
72YG50-250IA23.470112900380
73YG50-250IB21.660112900380
74YG50-315I25125302900380
75YG50-315IA23.7113222900380
76YG50-315IB22.510118.52900380
77YG50-315IC20.685152900380
78YG65-1002512.51.52900380
79YG65-100A22.3101.12900380
80YG65-125252032900380
81YG65-125A22.3162.22900380
82YG65-160253242900380
83YG65-160A23.42842900380
84YG65-160B21.62432900380
85YG65-20025507.52900380
86YG65-200A23.5447.52900380
87YG65-200B21.8385.52900380
88YG65-2502580152900380
89YG65-250A23.470112900380
90YG65-250B21.660112900380
91YG65-31525125302900380
92YG65-315A23.7113222900380
93YG65-315B22.510118.52900380
94YG65-315C20.685152900380
95YG65-100I5012.532900380
96YG65-100IA44.7102.22900380
97YG65-125I50205.52900380
98YG65-125IA451642900380
99YG65-160I50327.52900380
100YG65-160IA46.7285.52900380
101YG65-160IB43.32442900380
102YG65-200I5050152900380
103YG65-200IA4744112900380
104YG65-200IB43.5387.52900380
105YG65-250I5080222900380
106YG65-250IA46.77018.52900380
107YG65-250IB43.361152900380
108YG65-315I50125372900380
109YG65-315IA46.5110302900380
110YG65-315IB44.5100302900380
111YG65-315IC4185222900380
112YG80-1005012.532900380
113YG80-100A44.7102.22900380
114YG80-12550205.52900380
115YG80-125A451642900380
116YG80-16050327.52900380
117YG80-160A46.7285.52900380
118YG80-160B43.32442900380
119YG80-2005050152900380
120YG80-200A4744112900380
121YG80-200B43.5387.52900380
122YG80-2505080222900380
123YG80-250A46.77018.52900380
124YG80-250B43.360152900380
125YG80-31550125372900380
126YG80-315A46.5110302900380
127YG80-315B44.5100302900380
128YG80-315C4185222900380
129YG80-35050150552900380
130YG80-350A46.6142452900380
131YG80-350B40135372900380
132YG80-100I10012.55.52900380
133YG80-100IA891042900380
134YG80-125I10020112900380
135YG80-125IA89167.52900380
136YG80-160I10032152900380
137YG80-160IA93.528112900380
138YG80-160IB86.624112900380
139YG80-200I10050222900380
140YG80-200IA93.54418.52900380
141YG80-200IB8738152900380
142YG80-250I10080372900380
143YG80-250IA93.570302900380
144YG80-250IB8760302900380
145YG80-315I100125752900380
146YG80-315IA95113552900380
147YG80-315IB90101452900380
148YG80-315IC8285372900380
149YG100-10010012.55.52900380
150YG100-100A891042900380
151YG100-12510020112900380
152YG100-125A89167.52900380
153YG100-16010032152900380
154YG100-160A93.528112900380
155YG100-160B86.6247.52900380
156YG100-20010050222900380
157YG100-200A93.54418.52900380
158YG100-200B8738152900380
159YG100-25010080372900380
160YG100-250A93.570302900380
161YG100-250B8760222900380
162YG100-315100125752900380
163YG100-315A95113552900380
164YG100-315B90101452900380
165YG100-315C8285372900380
166YG100-350100150902900380
167YG100-350A87142752900380
168YG100-350B82135752900380
169YG100-100I16012.5112900380
170YG100-125I16020152900380
171YG100-125IA14017112900380
172YG100-160I16032222900380
173YG100-160IA1402818.52900380
174YG100-200I16050372900380
175YG100-200IA14045302900380
176YG100-200IB10040222900380
177YG100-250I16080552900380
178YG100-250IA14072452900380
179YG100-250IB10065372900380
180YG100-315I160125902900380
181YG100-315IA140110752900380
182YG100-315IB143100752900380
183YG125-10016012.5112900380
184YG125-100A143107.52900380
185YG125-12516020152900380
186YG125-125A14316112900380
187YG125-16016032222900380
188YG125-160A1502818.52900380
189YG125-160B13824152900380
190YG125-20016050372900380
191YG125-200A15044302900380
192YG125-200B13837.5222900380
193YG125-25016080552900380
194YG125-250A15070452900380
195YG125-250B13860372900380
196YG125-315160125902900380
197YG125-315A150110752900380
198YG125-315B143100752900380
199YG125-315C13488552900380
200YG150-12516024152900380
201YG150-125A15016112900380
202YG150-16016032222900380
203YG150-160A1502818.52900380
204YG150-160B14024152900380
205YG150-20020012.5372900380
206YG150-200A17610302900380
207YG150-200B14038222900380
208YG150-25020080752900380
209YG150-250A18770552900380
210YG150-250B17260452900380
211YG150-3152001251102900380
212YG150-315A187110902900380
213YG150-315B17293752900380
214YG150-3501601501102900380
215YG150-350A150142902900380
216YG150-350B140135752900380
217YG150-40020050451450380
218YG150-400A18744371450380
219YG150-400B17438301450380
220YG150-400C16032221450380
221YG150-50020080901450380
222YG150-500A18770751450380
223YG150-500B17462551450380
224YG150-500C16056451450380
225YG150-250I20080752900380
226YG150-250IA18770552900380
227YG150-250IB17360452900380
228YG150-315I2001251102900380
229YG150-315IA187110902900380
230YG150-315IB17395752900380
231YG150-350I1601501102900380
232YG150-350IA150142902900380
233YG150-350IB140135752900380
234YG200-20020012.5151450380
235YG200-200A17910111450380
236YG200-2502002018.51450380
237YG200-250A184.417151450380
238YG200-250B16714111450380
239YG200-31520032301450380
240YG200-315A18928221450380
241YG200-315B1732418.51450380
242YG200-40020050451450380
243YG200-400A18744371450380
244YG200-400B17438301450380
245YG200-400C16032221450380
246YG200-50020080901450380
247YG200-500A18770751450380
248YG200-500B17462551450380
249YG200-200I40012.5221450380
250YG200-200IA3581018.51450380
251YG200-250I40020301450380
252YG200-250IA35814221450380
253YG200-250IB3221318.51450380
254YG200-315I40032551450380
255YG200-315IA37428451450380
256YG200-315IB34624371450380
257YG200-400I40050901450380
258YG200-400IA37444751450380
259YG200-400IB34738551450380
260YG200-400IC32032451450380
261YG200-500I400801321450380
262YG200-500IA374701101450380
263YG200-500IB34660901450380
264YG200-500IC32050751450380
265YG250-25055020451450380
266YG250-250A50017371450380
267YG250-31555032751450380
268YG250-315A50028551450380
269YG250-315B45024451450380
270YG250-400550501101450380
271YG250-400A50044901450380
272YG250-400B46038751450380
273YG250-400C42931551450380
274YG250-500550802001450380
275YG250-500A510701601450380
276YG250-500B470601321450380
277YG250-500C430501101450380
278YG300-25072020551450380
279YG300-250A60017451450380
280YG300-31572032901450380
281YG300-315A65028751450380
282YG300-315B58024551450380
283YG300-400600501321450380
284YG300-400A662441101450380
285YG300-400B60938901450380
286YG300-400C53631751450380
287YG300-460720652001450380
288YG300-460A666551601450380
289YG300-235I1080401601450380
290YG300-235IA965321321450380
291YG300-460B614451101450380
292YG300-500720802501450380
293YG300-500A675702001450380
294YG300-500B625601601450380
295YG300-500C570501101450380
296YG350-250120020901450380
297YG350-250A108016751450380
298YG350-3151200321601450380
299YG350-315A1120281321450380
300YG350-315B1040241101450380
301YG350-4001200502501450380
302YG350-400A1120442201450380
303YG350-400B1040382001450380
304YG350-400C905311601450380
